2009 Vicem Windsor Craft 36
Big Price Reduction!

Engine Hour(s): 455/469

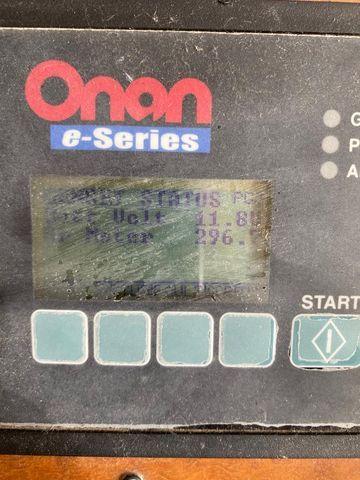

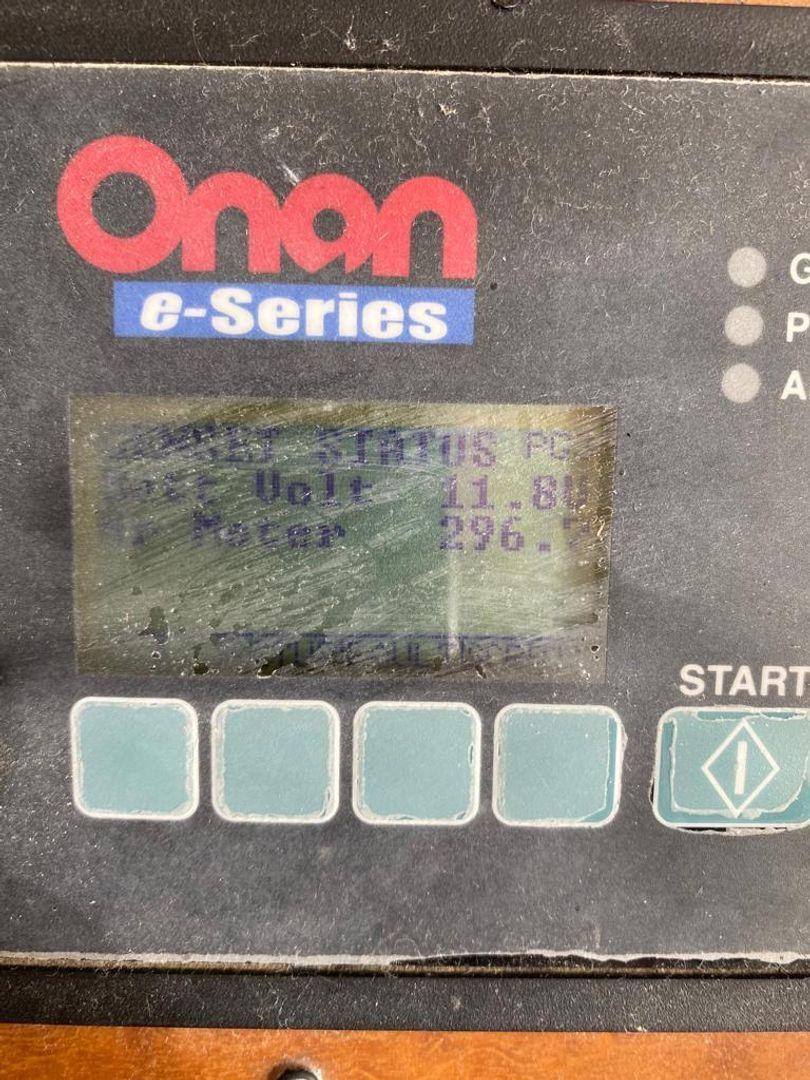

GenSet Hour: 296

Design & Construction

Construction: Cold Molded Mahogany with West System Epoxy

Hull Type: Vype Hard Chine - Planning Hull

Exterior Paint System: Awigrip - Awl Craft 2000

Certification: CE Design Category B / ABYC

Naval Architecture: Vicem Yacht Design Team

Interior & Exterior Design: Vicem Yacht Design Team

Builder: Vicem Shipyard, Istanbul - Turkiye

Model Year: 2009

Principal Dimensions

Length Over All: 11,70 m 38' 5"

Length Hull: 10.45 m 34' 3"

Length On Waterline: 9.18 m 30° 1"

Beam Over All: 3.60 m 11 10”

Draft Max. at 100% Loading :0.92 m 3° 0”

Displacement at 20%: 8.900 kg 19.620 Ibs

Displacement at 100% : 10.500 kg 23.150 Ibs

Number of Passangers: 2 guests in 1 stateroom

Performance

Maximum Speed: 35 knots at 20% loading condition

Cruising Speed: 26.0 knots at 20% loading condition

Range: 185 Nautical miles at Cruising Speed

Capacities

Fuel Oil Capacity: 610 It 160 US Gallons

Fresh Water Capacity: 240 It 63 US Gallons

Black & Grey Water Capacity :190 It 50 US Gallons

Machinery

Main engines: (2) Volvo Penta D6 - 330 / DP

Main Engine Power: (2) 330 hp (243 kW) at 3500 rpm

Propulsion System: (2) Aquamatic Stern Drive

Main engine controls: (1) Volvo Penta System Controls

Generator set: (1) Onan 5 MDKBH 5kW/60Hz

Electrical: 12V OC : 115V, 1 Phase, 60 Hz AC

Electronics and Navigation Equipments:

Navigation Multi Display

2kW Radome Antenna

GPS Antenna

Depth Color instrument

Autopilot Head with Core pack

Compass

Steering Wheel

22” LED TV for cabin

Bluray Player for Cabin

Stereo System for Cabin

Interior Equipments:

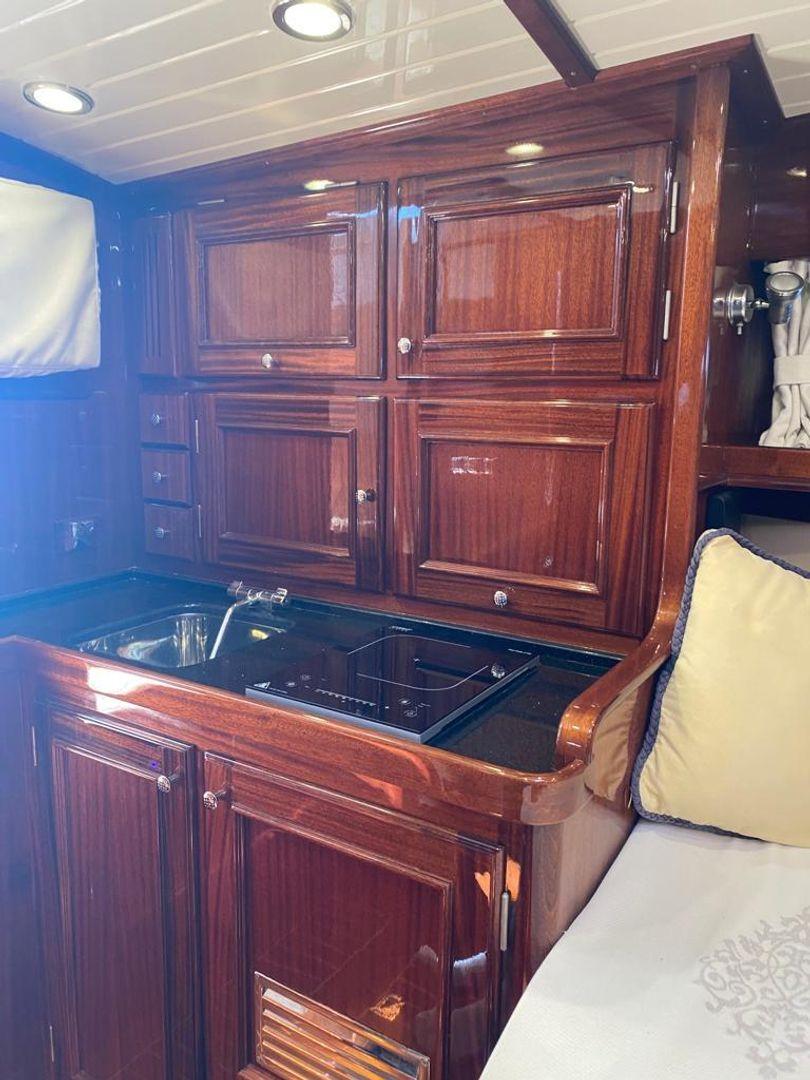

Granite Kitchen and Bathroom Countertops

Khaya Mahogany Interior Floors

Teak Cockpit Floors

Custom Cockpit Table with Table Stand

Curtains in Head and Cabin

Mirror in Head

Cantalupi Interior and Exterior Lights

85 It Callgy Refrigerator

Electric BBQ for Cockpit

Icemaker

Techanical Equipments:

Stainless Steel Anchor, Shafts and P-brackets

Trim Tab System

Electric Bow and Stern Thruster

Sea Water Filters e

Plumbing and Electrical Equipments:

Custom made HD-PE Fuel, Fresh Water and Holding Tanks

Sink and Faucets

Fresh Water Pump System

Fresh Water Heater

Pumps and Macerator Pumps

Electric Head

Electric switches & outlets

Battery Charger

Marine Grade Batteries

Deck Equipments:

Pantograph Wipers

Dual airhorn system

Searchlight with Remote Control

Electrical vertical Windlass

Teak Swim Platform and Swim Ladder

Hatches

Stainless Steel portholes

Cockpit Entrance Door

 ****Items and specifications are indicative only and Vicem Yachts reserves the right to modify, change or upgrade to meet quality standarts
