2012 Spirit Yachts 60 DH
Beyond beautiful, 100% hand-crafted, Spirit of Tradition short-handed performance deck house cruiser in sparkling condition with fantastic specification and 100% ready to go.



FURTHER BROKER’S COMMENTS:

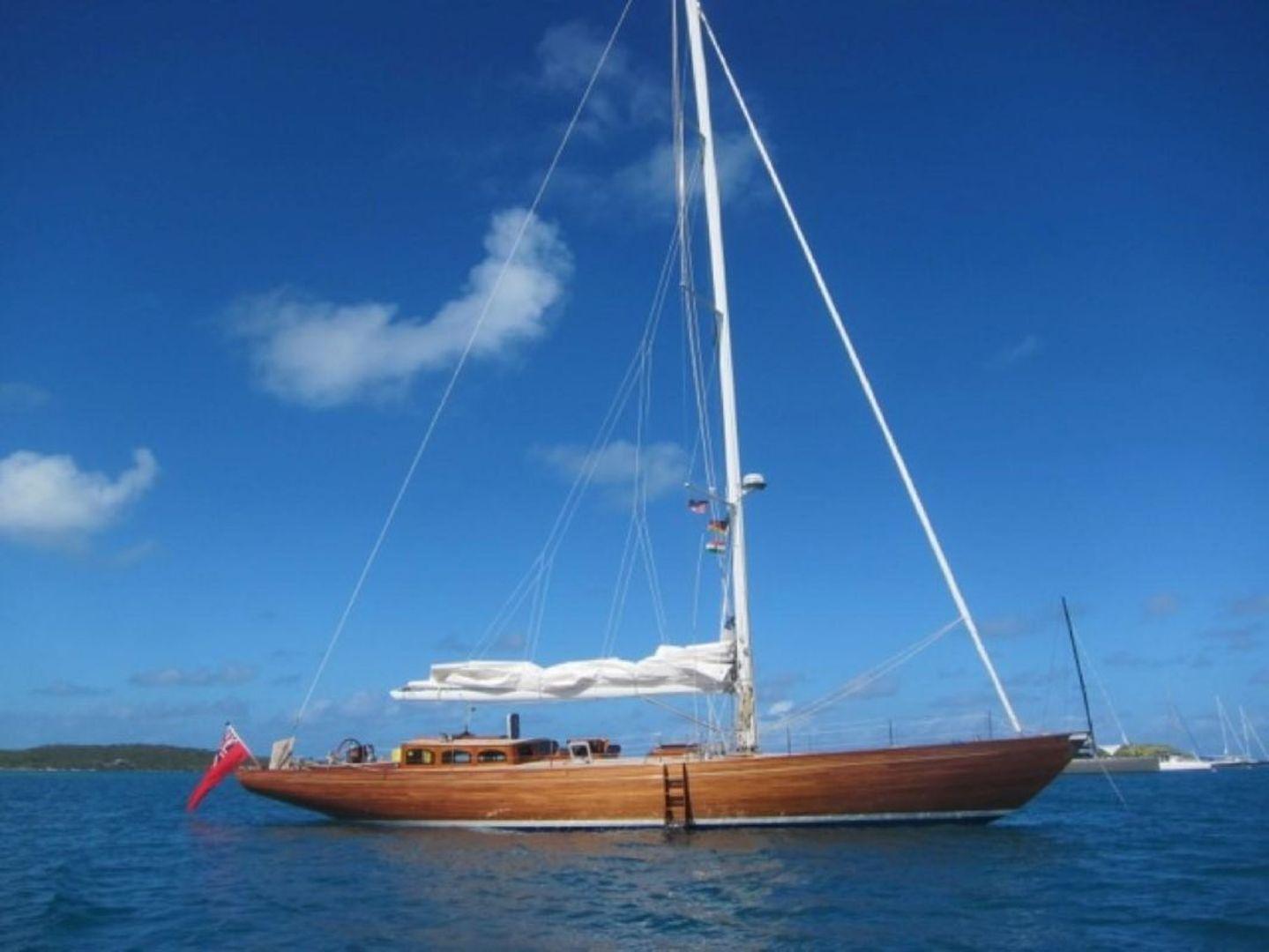

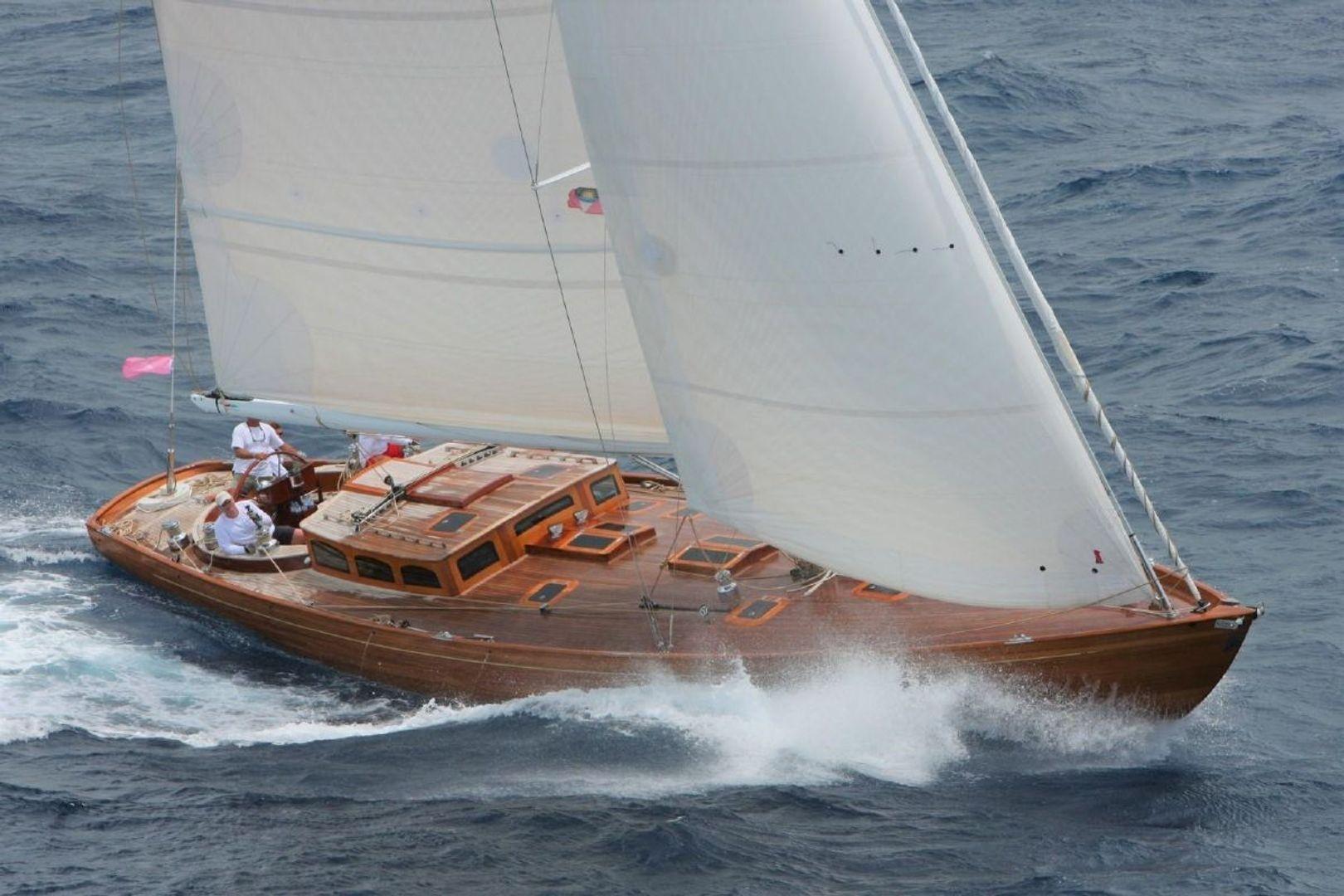

Without doubt one of the prettiest yachts afloat anywhere in the world today, the Spirit Yachts 60 Deck House strikes the perfect balance between classic style, modern performance, practicality, short-handed abilities and interior comfort. In this respect she has no peers.



Designed by Sean McMillan and hand-crafted in the UK for the very finest timbers, with ultra-modern aspects where needed, SPIRIT OF RANI was first launched in 2013 and has remained in the same ownership ever since. Her demanding and experienced owner had a specific design brief to create a yacht that would be easy to sail single or twin handed, could perform well on the racecourse and most importantly, would stop people in the tracks as they walk the dock. SPIRIT OF RANI fulfilled all these targets and more.



Built regardless of cost, employing the best of everything available, SPIRIT OF RANI boasts a fantastic specification, highlights of which include:-

Douglas Fir and Khaya Mahogany planking, epoxy bonded with 12 coats of Durapox and 6 coats of Awlcraft 2000 clear epoxy varnish to create a haed-wearing, long-lived mirror wood finish.

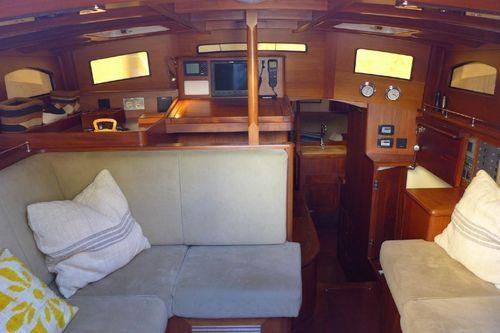

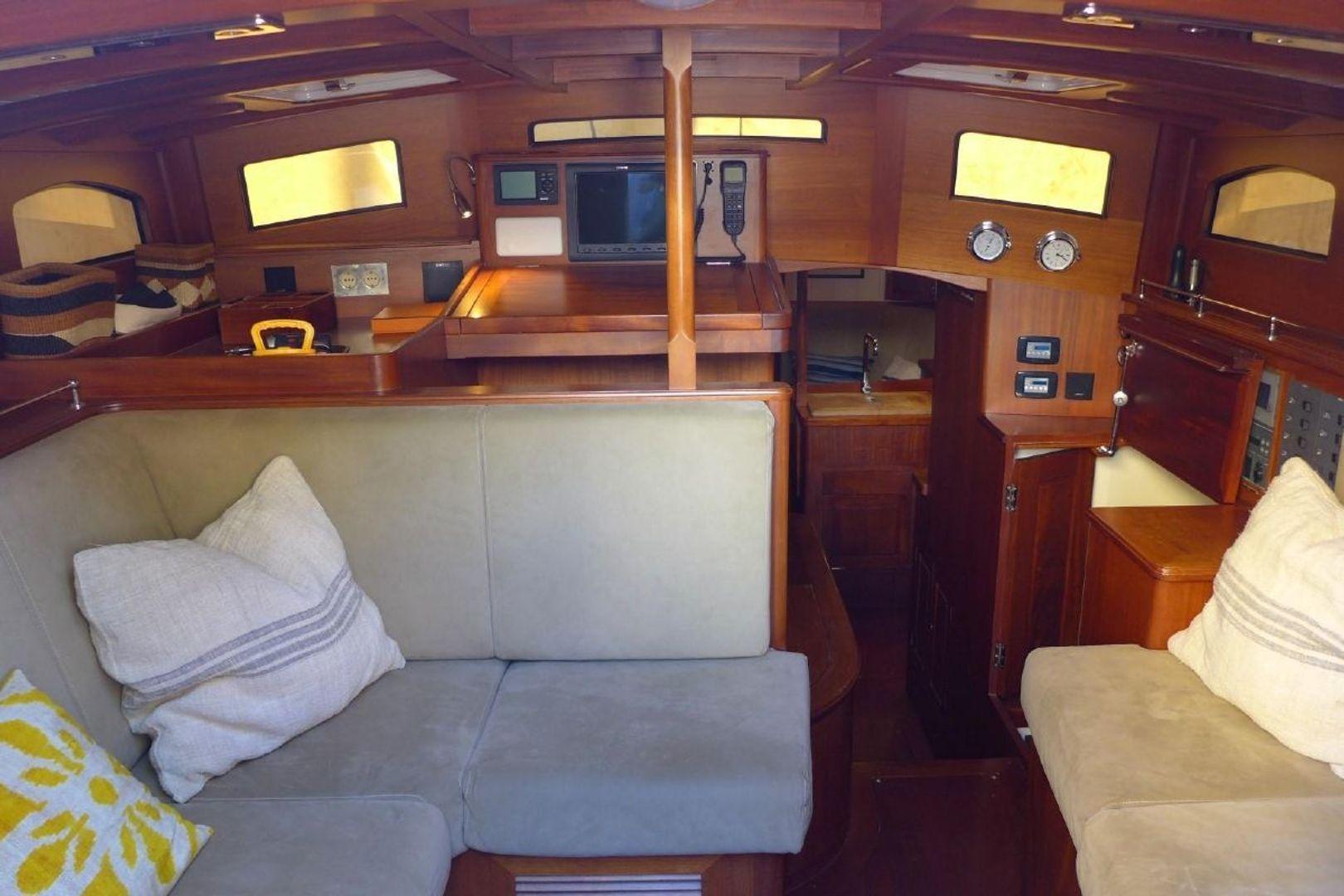

Raised deck house profile with upper and lower saloons. Upper navigation station for all-weathers navigation and excellent 360 degrees outward vision.

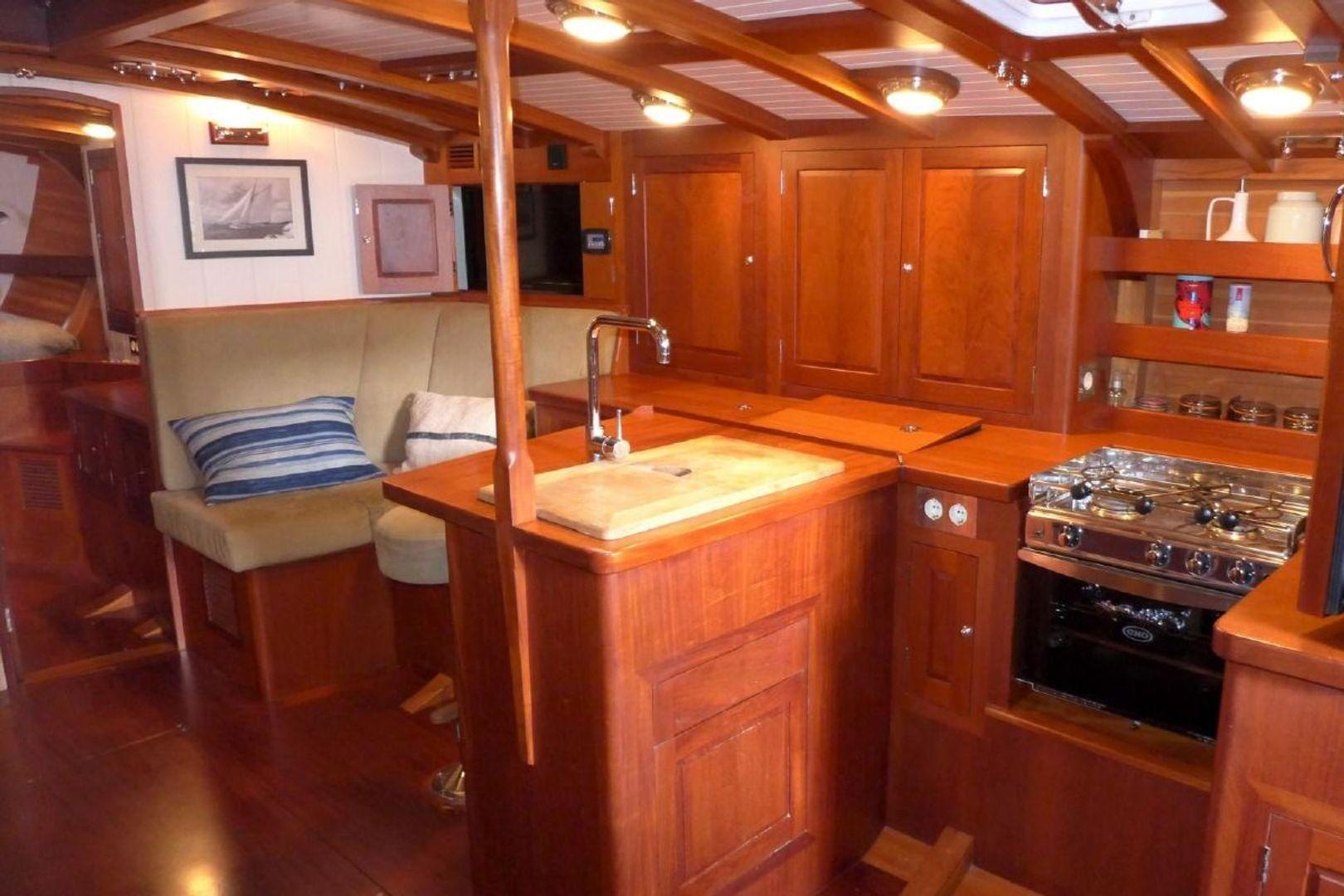

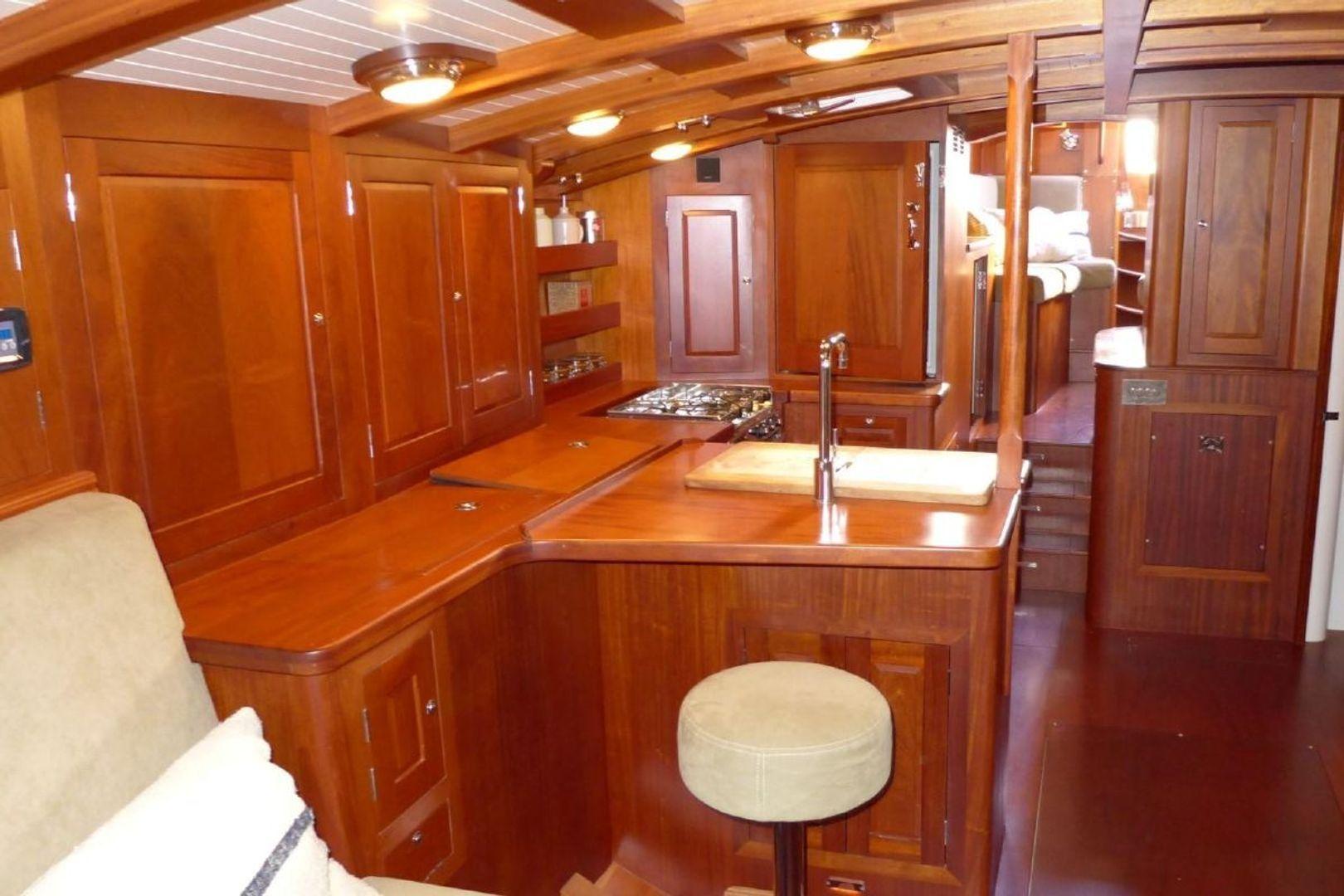

Traditional interior construction in Mahogany with extensive use of solid timbers
Lead bulbed performance keel with 38% ballast ratio and epoxy carbon sheathed blade rudder
Steyr 100hp diesel engine with wet exhaust system
Bowthruster
Mastervolt electrics with twin chargers, inverter and galvanic isolator
Battery banks replaced 2018
Mastervolt Whipser 8kva generator
Seafresh 220vAC reverse osmosis watermaker
Webasto reverse cycle air-conditioning system
2x Fridges and freezer

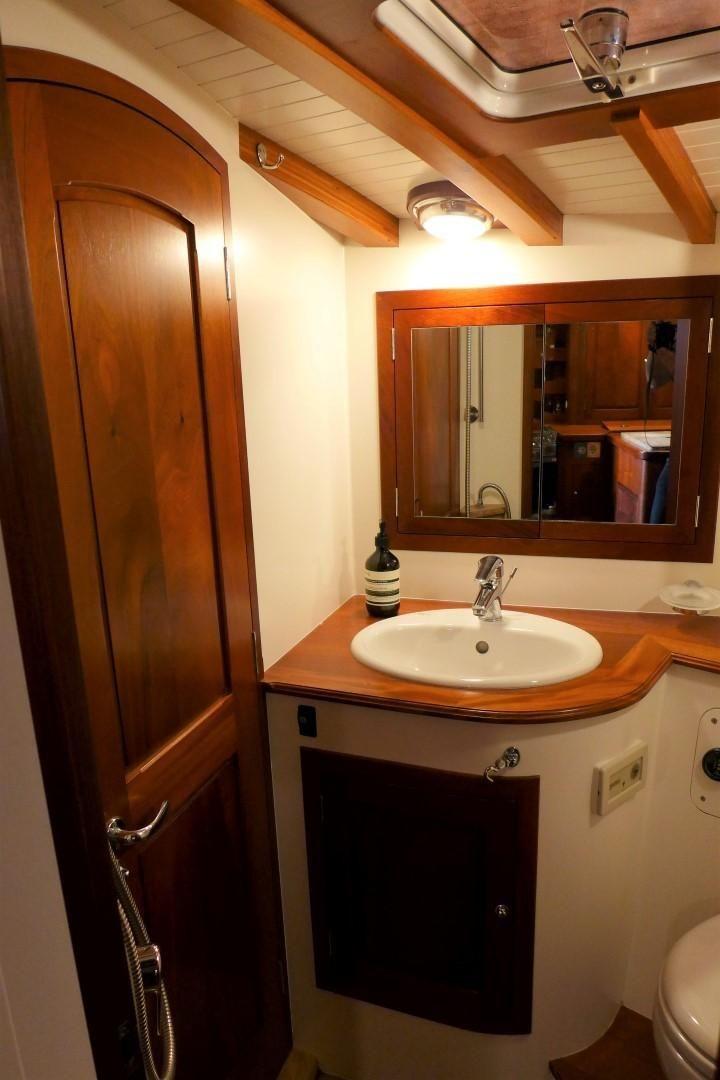

Electric freshwater flush heads
B&G navigation equipment with 20/20 displays in cockpit, 4G radar and Simrad plotters above and below decks
WiFi antenna
Bose speaker system and TV and amplified mast antenna
Custom Spars carbon fibre rig with Harken battencars and Switch track for easier mainsail handling
Electric genoa furling with sub-deck furler
Harken electric winch package in polished stainless steel
Furling reacher sail
Quantum Sails package - 2021
Tender and outboard


Beautifully kept and fastidiously maintained, SPIRIT OF RANI is now offered to make way for a smaller day/weekender and is priced substantially below a new-build project price.



OWNER’S COMMENTS:



I always wanted to have a classic looking sailing yacht, but with the performance and comfort of a new and modern example. Only very few shipyards were able to offer such a type of yacht, and Spirit Yachts were able to design a deckhouse concept for me, and offer the supreme quality of work I was looking for.



The plan was to do some extensive sailing in the Caribbean with my wife (short-handed), which we did for 3 seasons. Thereafter we brought SPIRIT OF RANI back to Europe. Having enjoyed sailing her twin-handed around Sardinia and Corsica, we headed to the South of France, where SPIRIT OF RANI can now be found and is now offered for sale to make way for a smaller day/weekend cruiser.



It is without a doubt that the next owner of SPIRIT OF RANI will be a person who appreciates the first class quality build, beauty and ease of handling, as well as the great performance, proven by our results while in the Caribbean. SPIRIT OF RANI is designed in such a way, that she can be handled by just one person without any problems, which I have done on many trips. Her mahogany hull is an eye-catcher and receives continuous appreciates from most sailing enthusiasts. It is therefore with a very heavy heart that SPIRIT OF RANI must now find her new custodian.



DESIGNER’S COMMENTS:



“The deckhouse range is designed with the option for long distance cruising in comfort, with full visibility and easy communication from the helm but with a style and performance that's very hard to find these days.”

Sean McMillan – Head designer and CEO Spirit Yachts



BUILDER’S COMMENTS:



The Spirit DH60 was first launched from the Spirit yard in 2013, and in the same year she made her racing debut at the Antigua Classics. Proving Spirit Deckhouse designs are more than capable of competing successfully, the DH60 picked up three ‘First of Class’ awards, including a first in class, concours class win and first in the single-handed race.



The brief for the first 60-foot Spirit Deckhouse was a classically designed yacht set up for easy short-handed sailing that was comfortable enough to spend long periods of time living onboard. The result was a stylish, yet practical yacht.



As with all deckhouse Spirits, the raised coachroof with panel windows provides near-360 degree views of the horizon.  An interior a navigation table within the deckhouse offers a helm position protected from the elements.  The raised coachroof also houses a great social area with port and starboard sofas.  Natural light floods in from the panel windows and crew and guests can watch the passing coastline or horizon in comfort.



The DH60 is primarily a cruising yacht but as mentioned above she can be adapted to compete at regattas if required.  Her lightweight hull, carbon spars and modern deck equipment facilitate performance sailing for both cruising and racing.



CONSTRUCTION



RCD Status:

Our understanding is that this vessel complies with the European Union Recreational Craft Directive and is categorised A – Ocean.


Hull Construction:

Hull constructed from Douglas Fir planking over male mould, 20mm scantling x 50mm cover, epoxy bonded.
Planking overlaid with two layers 3mm Khaya veneers laid at 45 degrees to planning, epoxy bonded.
Final layer of mahogany planking laid fore and aft to follow sheerline, the whole then bright finished.
The hog, keel, stem, stern post and horn timber all constructed from solid or laminated straight grain Douglas Fir.
Beam shelf from laminated Douglas Fir.
All floors, engine beds, keel and mast support from solid Mahogany
Fourteen major ring frames fitted along the hull from laminated mahogany.
Cap shroud ring frame (90mm moulded by 80mm sided) forms the primary chain plate mount and transmits the loads to hull and keel bearing.
The bulkheads at the fore end of the fore cabin and at the forward end of the cockpit are completely sealed and form watertight crash bulkheads.
The engine room bulkheads are watertight up to the deck saloon sole.
All piercings of watertight bulkheads for cabling, ducting, and pipework fitted with suitable glands and pass through the bulkheads as high as possible.
The hull is further stiffened by fitting all the internal furniture in plywood bonded to the hull to form a monocoque structure.
All plywood used is BS1088 and manufactured to LR marine grade specification.
Cove line rebated into hull with gold Awlgrip finish.
Signwriting of name and port of registry to transom using genuine gold leaf.
The hull is coated below the waterline with self-polishing antifouling paint.
The Mahogany hull is coated with 12 coats of Durapox over the bare wood, sanded fair, further 3 coats of Awlcraft 2000 clear, sanded fair and further 3 coats applied.


Deck & Superstructure Construction:

All deck beams in laminated Brazilian cedar, integral to ring frames where specified.
Structural bulkheads in 12mm plywood, braced with solid mahogany and stainless steel tie-bars if necessary.
The beams are overlaid with 1 layer of 12mm plywood, scarf jointed and then laminated with a 7mm thick laid teak deck, swept to the gunwale line with margin boards and king planks fitted in teak.
Decks painted with Sikaflex DC.
All hatches have teak margin board surrounds with no end grain showing.
Full length bulwarks fitted as part of the hull structure, bright finished inboard with capping rail running to a low swept taffrail surrounding the stern.
Cockpit constructed from solid mahogany on a marine plywood substructure, bright finished, with teak inlaid seating.
Deckhouse constructed in bright finished mahogany over laminate substructure.
Sliding mahogany hatch fitted on stainless steel runners in garage.
The deckhouse has 11 windows build from 8mm laminated safety glass


Keel & Rudder:

The keel is of the flattened bulb type for maximum righting moment and with optimum high/low pressure separation across the keel assured by bulb form, with vortex tip for minimal drag.
The keel blade is optimized for performance built to NACA section design, constructed in high strength SG steel.
The ballast bulb is cast in lead with approx. 4.5% antimony with an integrally cast matrix to join bulb and blade.
The keel weighs a total of 6,200kg and is through bolted to the hull with five 35mm keel bolts through the centerline plus ten 25mm bolts around the outside of the keel plate matrix.
The keel is faired and coated with epoxy barrier coating before painting.
The keel is fitted to the yacht in a manner that facilitates the removal of the keel if required at any point in the future (jointing seam line visible).
Provision allowed for up to 300kgs of trim ballast if required.
Rudder blade manufactured as a multi-laminate timber blade, epoxy carbon sheathed and fitted on a solid 90mm machined stainless steel stock.
The rudder has winglets and a vortex tip for maximum control.
The rudder stock rotates in self-aligning bearings top and bottom fitted with O rings.
The rudder quadrant is fitted to the stock with a drilled machined clamp.
Autopilot steering arm machined and fitted to stock.
The top of the rudder stock is machinery to take an emergency tiller.
The emergency tiller is stowed under the portside lazarette hatch lid.


MACHINERY



Engine & gearbox:

Steyr 100hp turbo diesel inboard, indirect cooled.
KM35A1 Marine gearbox. 2.6:1 gearbox ratio, 8 degree down drive angle.
Wet exhaust system with water sump and swan neck to outlet under counter.
The engine is mounted centrally in the deckhouse area. The engine bilge is separated from the main bilge area.
Engine space fully sound proofed with 50mm high performance insulation. Engine intake air drawn from baffled venting in vent box sited between front of deckhouse and aft of the centreline skylight. Engine air also drawn through locker in the deckhouse.
Engine and drive train in-line, soft mounted with flexible coupling for minimal vibration.
Engine raw water intake fitted with heavy duty coarse filter.
Engine fitted with hot water take-off for calorifier.
3x engine room blowers (1x automatic and 2x manually switched)
All machinery, pumps, filters, motors etc. flexibly mounted to reduce vibration and noise and have drip trays positioned beneath them.


Maintenance and Performance:

Approx engine hours: approx 890 hours as of Summer 2021
Engine regularly serviced.
The main engine has been maintained in accordance with the Manufacturers’ recommendations
Range (Cruising): approx. 660nm.
Engine speed: 9.8 knots.


Propulsion & Steering:

35mm Duplex stainless steel prop shaft through bronze P bracket to 4-bladed Gori fully feathering propeller.
Inboard shaft bearing flexibly mounted.
Sidepower 90kgf (7kW) duo-prop bowthruster fitted in GRP with joystick control at helm pedestal.
Engine control panel near helm position with full instrumentation and audible alarms.
Single lever side-mounted throttle/shift control at binnacle.
Steering is by direct chain and wire drive.
Wheel mounted to shaft on double bearings in binnacle, chain over sprocket drive on keyed shaft. Chain to wire splices runs over articulated sheaves to quadrant.
Wheel custom built in laminated mahogany rim with high strength invisible carbon fibre core.
Five pairs of stainless steel spokes support the rim.
Wheel brake fitted.
Wheel diameter 1.3m, 3.0 revolutions lock to lock.
Quadrant stops at 35 degrees either side of CL.

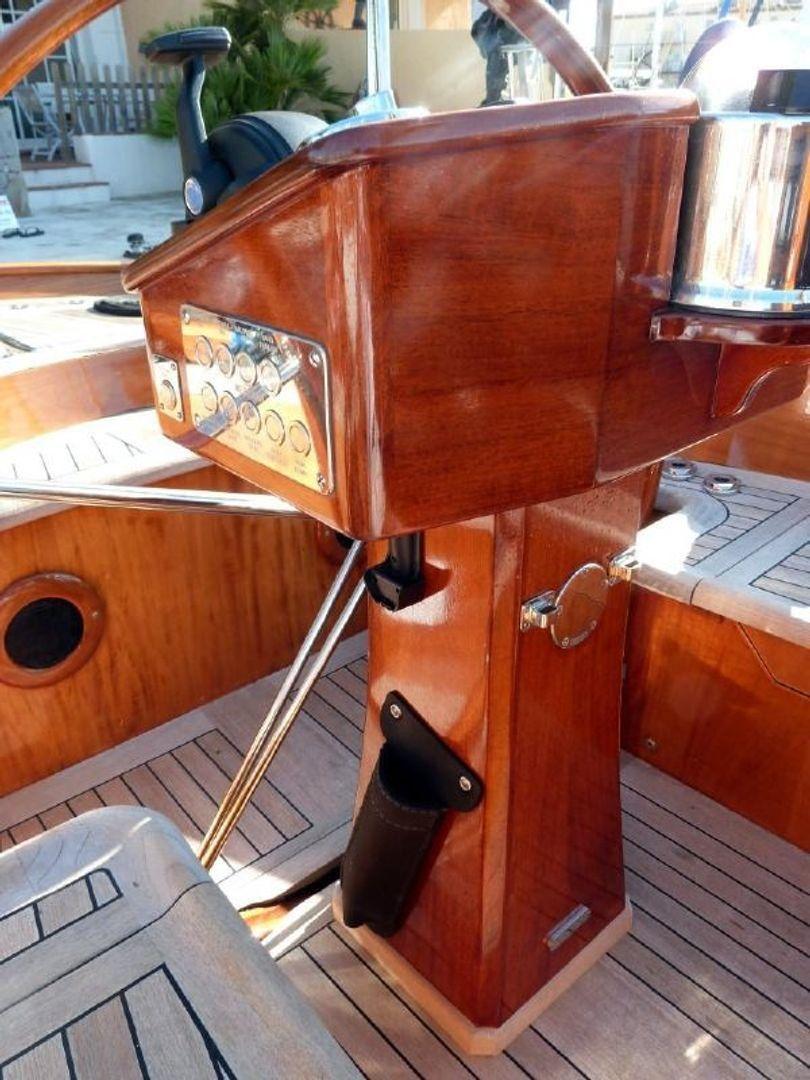

Mahogany binnacle with turned top and bottom and octagonal classical fluting to body.
Binnacle fitted with 5” Danforth or Rigel compass with compass light and dimmer switch.
Anchor up and down control with meter reading fitted to binnacle.
Rudder position indicator in autopilot head via transmitter on rudder stock.


ELECTRICAL SYSTEMS



Voltage systems:

24vDC domestic system with 12vDC starting circuits and 220vAC via shore power, generator or inverter


Battery Banks:

1x 12vDC engine start battery – 2018
1x 12vDC generator start battery – 2018
4x 12vDC AGM service batteries joined in parallel and series to provide 24vDC – July 2021


Charger/Inverter:

Mastervolt MASS 24/50 50Amp 24vDC charger for service bank
Mastervolt IVO 12/10 10Amp 12vDC charger for start batteries
Mastervolt 24/1000 1kw sinewave inverter
Mastervolt control panel at chart table


Alternators:

High output 24vDC engine-mounted alternator with 12vDC charge facility via splitter diode


Generator:

Mastervolt Whisper 8kva 50Hz 220vAC diesel generator
Integral 35Amp 12vDC alternator
Injected exhaust systems to water/gas separator.
Water gravity discharge through hull below the waterline, with a gas to outlet under the counter.
Check valves in counter skin fittings.
Full instrumentation at chart table.
Soft mounted on base plate in machinery space, full sound shields fitted.
The heat exchanger is linked to the hot water calorifier to augment the hot water supply.
Generator has separate seawater intake with coarse filtration fitted.
Generator has stop/start at AC panel at the chart table.
Generator hours: approx 890 hours as of July 2021


Other Electrical:

Mastervolt, chrome socket and plug 32 amp in aft self-draining gas bottle locker.
Shore cable of 10m and further extension cable of 15m
Shorepower fitted with Mastervolt 7kva galvanic isolator.
220v ringmain fitted around the vessel with sockets to each cabin and bathroom.
Circuit breakers for battery chargers and inverters.
Circuit breakers for onward distribution


PLUMBING & GAS SYSTEMS



Fresh Water:

Hot water system fitted with a 60 litre calorifier, mounted in the engine space. Fabricated from marine grade stainless steel with a 750w 240v AC heater element.
Calorifier connected to both generator and the main engine via diverters to enable waste heat to be used effectively.
Cold water feed via an inlet combining pressure relief valve and non-return valve.
Calorifier circuit fitted with all necessary safety devices – particularly thermostat, thermometers, non-return valves and pressure relief valves.


Watermaker:

Seafresh fully automatic Watermaker fitted, model H203, producing 50 litres per hour by reverse osmosis. 240vAC powered.
Watermaker laid up 2017


Bilge Pumps:

Electric bilge pumps with indicators and manual overrides at chart table
Manual bilge pump in cockpit drawing from main bilge sump


Grey & Black Water:

Heads discharge outboard or to black water tanks via diverter valves
Blackwater holding tanks can discharge to sea or to land via s/s deck fillers
All showers and sinks discharge directly outboard


TANKAGE



Fuel:

Fuel capacity 500 litres
Tank manufactured from high grade opaque white polyethylene so that the level can be clearly seen.
Fuel tank filler fitted with anti-splash reservoir draining to tank and no-smell filter to breather.
Tank professionally cleaned – Autumn 2020


Fresh Water:

680 litres in 2x 340 litres tank
Tank manufactured from high grade opaque white polyethylene so that the level can be clearly seen.


Holding Tanks:

2x stainless steel blackwater holding tank with combined capacity of 170 litres


NAVIGATION & COMMUNICATION EQUIPMENT



In Cockpit:

B&G autopilot control, incl. rudder indicator connected to B&G T2 autopilot fitted, hydraulic linear drive ram system.
Simrad GPS chartplotter and Broadband radar repeater
B&G read outs at deckhouse aft face (port). 20/20HV multi-function display x 2.
B&G read outs at deckhouse aft face (starboard). 20/20HV multi-function display x 2.
Steering compass


At chart table:

B&G autopilot remote control
Simrad GPS chartplotter and broadband radar
B&G GFD multi-function display (master)
Further multi-function monitor fitted in owner’s cabin.
B&G Hydra G3000 CPU computer.
B&G Halcyon 2000 compass sensor.


Communications Equipment:

Simrad VHF to current GMDS requirements, DSC enabled.
Simrad VHF speaker in cockpit
Icom waterproof handheld VHF.
VHF antenna fitted at masthead.
Wi-Fi internet receiver fitted at masthead.


DOMESTIC EQUIPMENT
