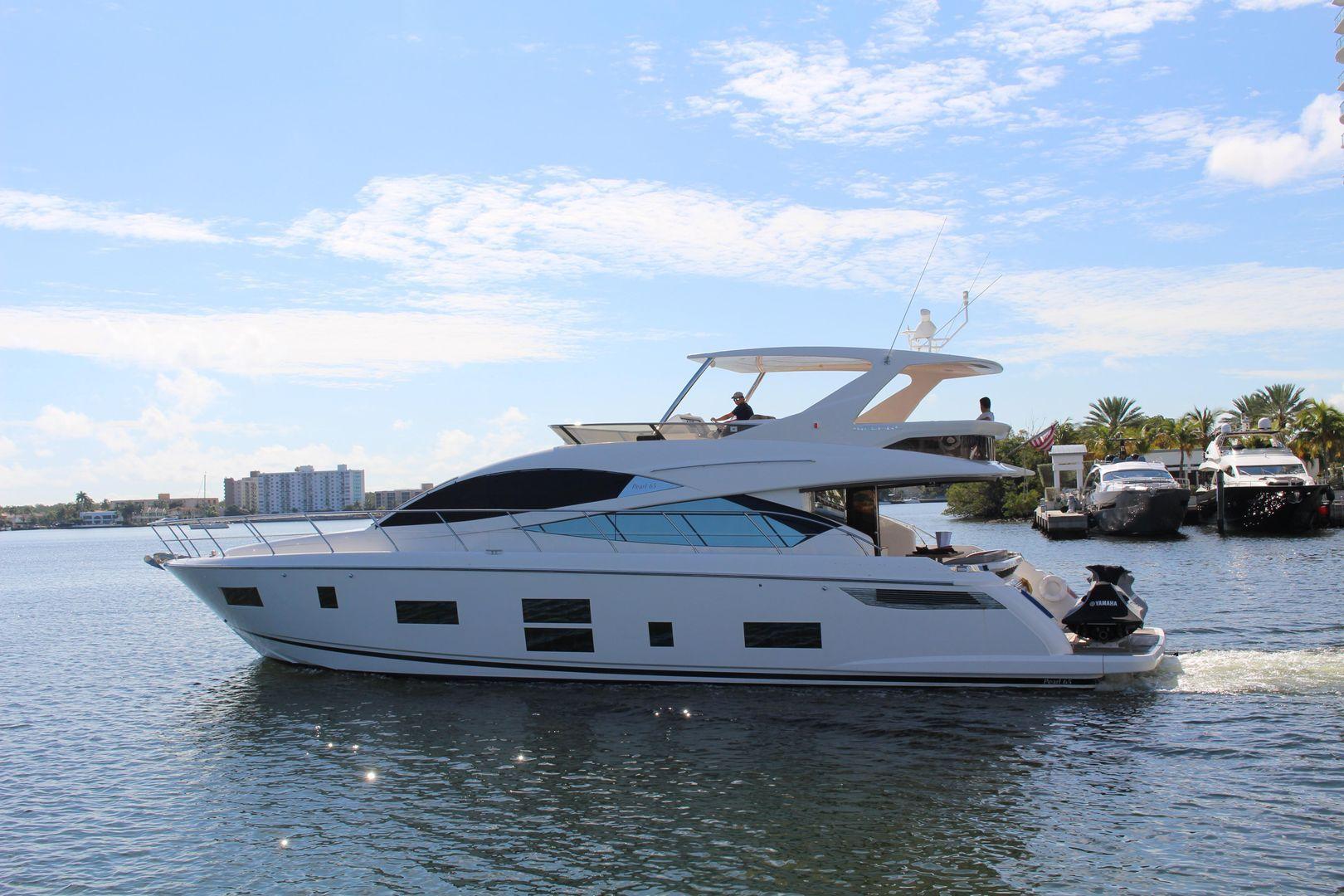

2017 Pearl 65
This one owner meticulously kept PEARL 65 is the only one of its kind North America.

Purchase can be made in Cryptocurrency!

Pearl Yachts produce a limited number of high-quality yachts each year and is a brand-defining choice. Driven to offer a premium product, designed by the world’s most renowned yacht and interior designers, meticulously engineered, and crafted by expert hands, obsessed with perfecting every detail. Pearl builds yachts in an oyster, a state-of-the-art production facility that houses the entire supply chain. Only in this way can Pearl keep faith with their mission to offer you a yachting experience as unique and prized as the rarest of pearls.



Principle Characteristics

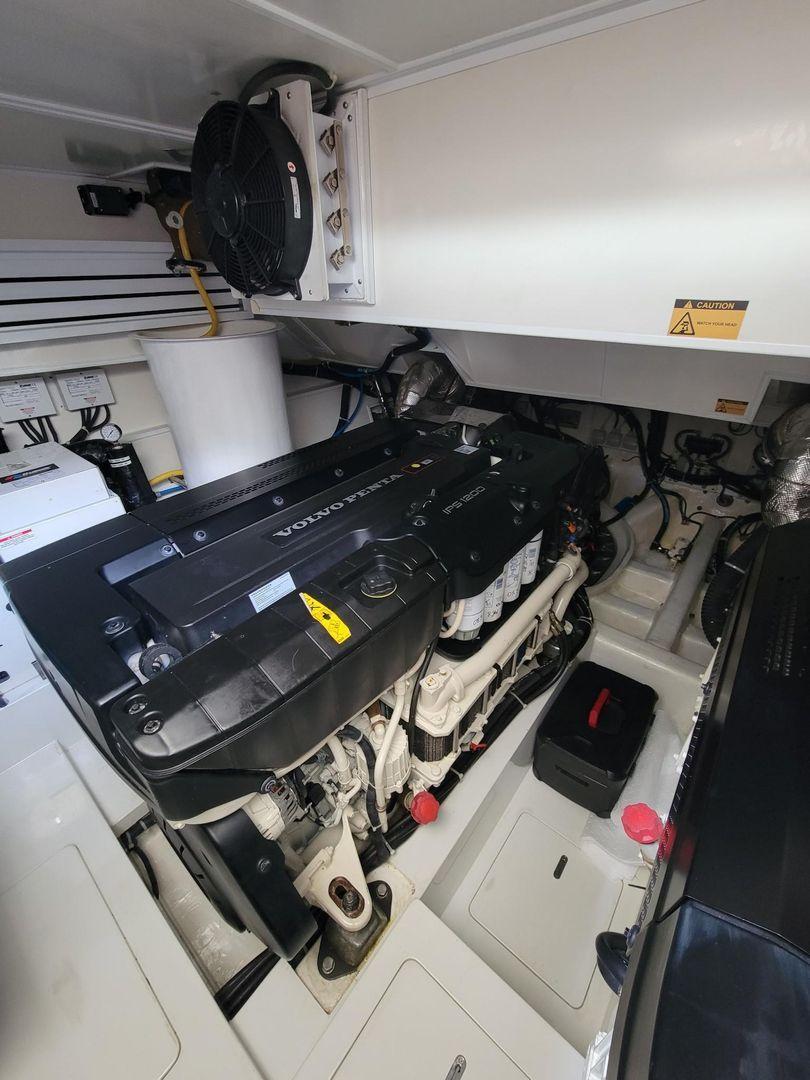

Main Engines & drive system: Twin Volvo IPS 1200 EVC E2 900hp

Generator: Kohler 20EOZD 60Hz 220v (USA)

Hydraulic bathing platform: H&B Technics of Germany

Patio Door: Trend Marine- Manually operated, Hinged Bi-fold

 Bow thruster: Side power SE150/215T, 24V

Engine exhaust systems: Integrated in Pod system

Windshield Wipers: Exalto 2176.35/215T, motors

Shore power cable master: Glendenning Cable Master CM7 24V

Water Heater (calorfier): Seaward  HF2250, 20Gal with heat exchanger

Fresh water circulating pump: Shurflo 4148-163-A75 5.0GPM 55PSI 24

Swimming Shower: Whale Twist- Whale DS0006

Navigation Lights: Hella 24 V

Search Light: Jabsco 602335L 24v (with remote control)

Horn: Electric, Deluxe Dual Trumpet AFl 11018XLP 24v 123db

Anchor winch: Lewmar V4 24v

Anchor: 30kg Lewmar C3 24V

Capstan winches: 2xLewmar C3 24V

Stabilisation: 1x Seakeeper M8000 Gyros

Underwater lights: 6 x Lumishore Surface Mount SMX101-W

Reverso oil changer: 24v dc for Engines and IPS pods and Generator



SYSTEMS

v  Garmin- GMR Xhd 4’ Open array antenna

v  Garmin- GMR 4kw xHD Radar pedestal

v  Garmin- VHF300i with one GHS10i & active speaker at lower helm

v  Volvo- GPSMAP 8015 multi-station displays, worldwide with AIS (2 at upper helm)_GMi20 Marine Instrument display

v  Garmin- Airmar DST800 Thru-Hull Transducer (Depth, Speed & Temperature)

v  Garmin- GHS 10i VHF Fixed at upper helm

v  Garmin- GHS 20i wireless VHF Hand held at lower helm

v  Autopilot- Integrated in the POD system and viewed through Garmin navigation system

v  Compass- Ritchie flush mount 4 ½” dial (upper and lower helm)

v  AIS aerial (Pacific 1.8m P6105 Altraglass)

v  VHF aerial (Pacific LR pro-series 2.5m)



Bilge Pump System:

v  6 x Rule 2000, 120 litres per in, 24v automatic bilge pump system fitted with hgh water level alarms and overrides switch at each helm

v  1 x Rule 3700, 220 litres per min, 24v automatic bilge pump system fitted with high water level alarm and overrides switches at each helm

v  1 x Whale BP0527 manual bilge pump in the engine room

v  1 x Johnson 10-24800-01 manual bilge pump in the cockpit



Reverse-cycle chilled water air-conditioning cooling and heating system- CRUISAIR Tropical spec:

v  3 x AT18VHZ-C/AIR 18,000 BTU Air handlers

v  1 x AT12VHZ-FC/AIR 12,000 BTU Air handlers

v  1 x AT9VHZ-AIR 9,000 BTU Air handlers

v  2 x AT6HVZ-FC/AIR HANDLER 6000 BTU/HR. Total BTU for air handler is 87.000

v  1 x P711 Circulation pump

v  2 x TWc36ck-TWLC/CHILLER COMPACT chiller units 36.000 BTU each

                             Total BTU for system= 72.000 BTU



Batteries/Charging system:

v  Marinco stainless steel shore power inlet- 63A 230V

v  1 X Victron Skylla-I 24/100 (3) Battery charger 24V (for domestic batteries, engine start batteries)

v  1 x Mastervolt 12/10 Battery Charger 12v (for generator battery)

v  1x Victron Centaur 24/16 (3) Battery Charger 24V (for bow thruster & anchor winch batteries)



Batteries:

v  Engine start batteries:

v  Domestic supply batteries:

v  Bow thruster & anchor winch:

v  Generator Batteries:

Cathodic protection:

v  4 x 3.5KG zinc anodes (FM-B-44” x 8”) rectangle sacrificial anodes connected to ships bonding system

v  Individual sacrificial anodes for Bow thruster, Engines, Pods, and bathing platform



Electrical control system/Lighting:

v  Axon AC/DC electrical control system via AC/DC Distribution panel and DC breaker boxes (each item is protected with a MCB)

v  240V sockets

v  Switched lighting control

v  Tank level monitoring via Vessel View displays at the helms and the anologue displays just inside the crew cabin entrance



A-V EQUIPMENT (N.B TVs etc may vary due to availability)

Exterior area:

v  2x pairs of 6” Fusion MS FR6021 external marine speakers, 1 pair fitted to the radar arch on the flybridge, 1 pair fitted to the aft end of the cockpit canopy

v  1 x Fusion MS-NRX200i remote control fitted to the cockpit

v  TV status Aerial (omnidirectional) fitted to the cockpit

v  AM/FM Aerial (Pacific LR pro-series 2.5m)

Galley/dining area:

v  1 x Fusion MS-AV700i stereo head unit fitted at the lower helm (option to have a Fusion iPOD, MS IPDOCK, dock fitted as well)

v  1 x Fusion MS-BT100 Bluetooth module fitted to FUSION stereo head unit to enable Bluetooth audio streaming from a compatible Apple, Android, Windows, BlackBerry or other Bluetooth compatible media device

v  1 pair of 5” Marine AV speakers, fitted to galley dinette areas. Model:- MAVO5ROU

v  1 pair of 5” Marine AV speakers, fitted to master cabin dinette areas . Model:-MAVO5ROU

v  1 x Fusion MS-AM504 amplifier fitted to master cabin dinette areas. Model:- MAVO5ROU

Saloon:

The saloon is fitted with the latest Samsung 43” Series 6 Smart 3D Full HD LED TV fitted on a lifter built in to the starboard side saloon seating and connected to Fusion DVD player at helm. There are also 4 x 5’ Marine AV speakers, fitted in the head lining (port & starboard)

Owners Cabin:

The Owners Cabin is fitted with the latest Samsung 43” Series 6 Smart 3D Full HD LED TV and a Samsung 2.1 Blu-ray player. The owners cabin benefits from a Bluetooth audio receiver named to this cabin which can be easily paired to any device which streams audio over Bluetooth and is connected to the 2.1 blue ray. There are also 2 x 5” Marine AV speakers, fitted in the head lining (port & starboard)

Forward Cabin:

The forward cabin is fitted with a Samsung 22” TV and a Samsung 2.1 Blu-ray player. The owners cabin benefits from a Bluetooth audio receiver named to this cabin which can be easily paired to any device which streams audio over Bluetooth and is connected to the 2.1 Blu-ray. There are also 2 x 5’ Marine AV speakers, fitted in the head lining (port & starboard)

Starboard/Port Cabin:

These cabins are fitted with a Samsung 22” TV, linked to a Samsung Blu-ray/ DVD player

Crew Cabin:

This cabin fitted with a Samsung 22” TV, linked to a Samsung Blu-ray/DVD player

DOMESTIC APPLICANES

v  1 x Miele K6115 4 zone HOB 220v

v  1 x Miele H6200BM Microwave combination oven 220v

v  1 x Vitrifrigo BLACK 230 LITRE FRIDGE/60 LITRE FREEZER, 12/24V

v  1 x Vitrofrigio DCW46 wine cooler 220v

v  1 x Indesit WIDXL126 Washer/Dryer (Optional) 220v

FLYBRIDGE WETBAR APPLIANCES

v  1 x Kenyon B70061 Frontier All Seasons 220V No Lid Built in, Electric

v  1 x Webasto CR49 – INOX (isotherm) drinks fridge 24v

FUEL FILTERS

v  Engine fuel filters – 2 Racor 1000MA @ 180 GPH (7/8” port)

v  Generator fuel filter – 1 x Racor 230R fuel filter

SEAFIRE SYSTEM AND FUEL SHUT OFF SYSTEM

v  1 x Seafire FD1000M Engine Room Fired Extinguisher linked to the engine room extract ion fans, intake fans and the engine ignitions. Manual SeaFire extinguisher cable pulls located in the Emergency Locker near the Patio Door (port size)

v  Manual fuel shut off valves located in the Emergency Locker near the Patio Door (port side) and clearly labeled for each engine and the generator

GREY WATER SYSTEM

v  2 x Rule 98A-24V Shower Sump System

v  1 x bespoke sump box containing a Rule 2000 pump & Rule 35A float switch

BLACKWATER/TOILET SYSTEM

v  4 x Tecma silence plus systems (with soft closing lid) fed to a central holding tank or overboard via a diverter valve

v  320 litre holing tanksa

v  1 x Jabsco 18590-2094 24V macerator pump

v  Deck pump out with 38mm pipe

v  Holding tank, odour carbon filter: Sealand 30931004

v  1 x Vented loops

DECK FITTINGS

Glass/doors:

v  1 x Trend Marine hinged, bi-fold patio door

v  1 x Trend Marine custom made flybridge windscreen

v  Windscreens & side deck screens by shipyard

v  Bonded glass portlights and opening Port Lights by Trend Machine

Deck Hatches

v  1 x Lewmar Forward cabin hatch fitted with mosquito screen and shade

v  1 x custom flybridge hatch made by the shipyard

Teak decks and tables

v  Teak decking fitted to the cockpit & bathing platform

v  Teak tables are fitted on the flybridge and in the cockpit

v  Teak fitted to the flybridge

v  Teak fitted to the side decks

EQUIPMENT FITTED OR SUPPLIED LOOSE ON BOARD

General:

v  6 x inflatable BLACK PVC fenders (86 cm x 28cm) and 3m rope

v  2 x 10m ¾” dock lines with a spliced 12” loop

v  2 x 15m ¾” dock lines with a spliced 12” loop

v  1 x telescopic boat hook

v  1 x hose

v  1 x fold away swimming ladder fitted to the bathing platform

v  2 x coats of international Grey Primocon antifoul primer

v  3 x coats of International Trilux 33 white antifoul

Lewis Rissman Lewis@myyachtsales.com 954-854-3900
