MORGAN 45 Detailed Review

1 of 2

If you are a boat enthusiast looking to get more information on specs, built, make, etc. of different boats, then here is a complete review of MORGAN 45. Built by Morgan Yachts and designed by Charles Morgan, the boat was first built in 1966. It has a hull type of Long Keel and LOA is 13.92. Its sail area/displacement ratio 16.78. Its auxiliary power tank, manufactured by 189 L, runs on undefined.

MORGAN 45 has retained its value as a result of superior building, a solid reputation, and a devoted owner base. Read on to find out more about MORGAN 45 and decide if it is a fit for your boating needs.

Boat Information

Boat Specifications

LOA:13.92 m / 45.67 ft

Rigging Type:Masthead Sloop

Hull Type:Long Keel

S.A. (reported):82.96 m² / 892.97 ft²

Draft (max):1.85 m / 6.07 ft

Displacement:11340 kg / 25000.39 lbs

Ballast:5443 kg / 11999.75 lbs

S.A./Disp.:16.78

Bal./Disp.:48.00

Disp./Len.:359.81

Construction:FG

Ballast Type:Lead

Last Built:1970

Designers:Charles Morgan

LWL:9.58 m / 31.43 ft

Sail Boat Calculation

Definitions

Comfort Ratio:44.40

Capsize Screening Formula:1.51

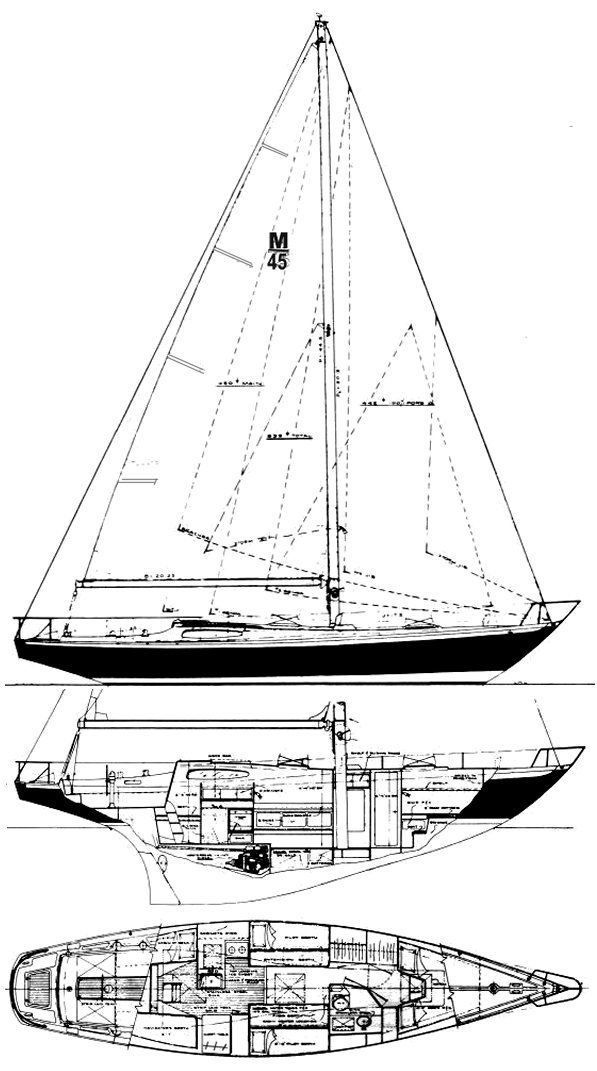

Rig And Sail Specs

Help?

I:15.39 m / 50.49 ft

S.A. Fore:13.56 m / 44.49 ft

E:6.17 m / 20.24 ft

S.A. Fore:41.05 m² / 441.86 ft²

S.A. Main:41.86 m² / 450.58 ft²

S.A. Total (100% Fore + Main Triangles)82.91 m² / 892.44 ft²

Auxillary Power Tank

Fuel:189 L

Accomodations

Water:379 L / 100.12 gals

Contributions

Builders:Morgan Yachts

Designers:Charles Morgan

FAQ

Who designed the MORGAN 45?

MORGAN 45 was designed by Charles Morgan.

Who builds MORGAN 45?

MORGAN 45 is built by Morgan Yachts.

When was MORGAN 45 first built?

MORGAN 45 was first built in 1966.

How long is MORGAN 45?

MORGAN 45 is 9.58 m in length.

What is mast height on MORGAN 45?

MORGAN 45 has a mast height of 13.56 m.
