MORGAN 34 Detailed Review

1 of 3

If you are a boat enthusiast looking to get more information on specs, built, make, etc. of different boats, then here is a complete review of MORGAN 34. Built by Morgan Yachts and designed by Charles Morgan, the boat was first built in 1965. It has a hull type of Keel/Cbrd. and LOA is 10.36. Its sail area/displacement ratio 16.25. Its auxiliary power tank, manufactured by Universal, runs on Gas.

MORGAN 34 has retained its value as a result of superior building, a solid reputation, and a devoted owner base. Read on to find out more about MORGAN 34 and decide if it is a fit for your boating needs.

Boat Information

Boat Specifications

LOA:10.36 m / 33.99 ft

Rigging Type:Masthead Sloop

Hull Type:Keel/Cbrd.

S.A. (reported):50.63 m² / 544.98 ft²

Draft (max):2.41 m / 7.91 ft

Displacement:5670 kg / 12500.20 lbs

Ballast:2359 kg / 5200.70 lbs

S.A./Disp.:16.25

Bal./Disp.:41.60

Disp./Len.:368.08

Construction:FG solid hull, balsa cored deck

Ballast Type:Lead

# Built:400

Designers:Charles Morgan

LWL:7.54 m / 24.74 ft

Sail Boat Calculation

Definitions

Comfort Ratio:32.68

Capsize Screening Formula:1.73

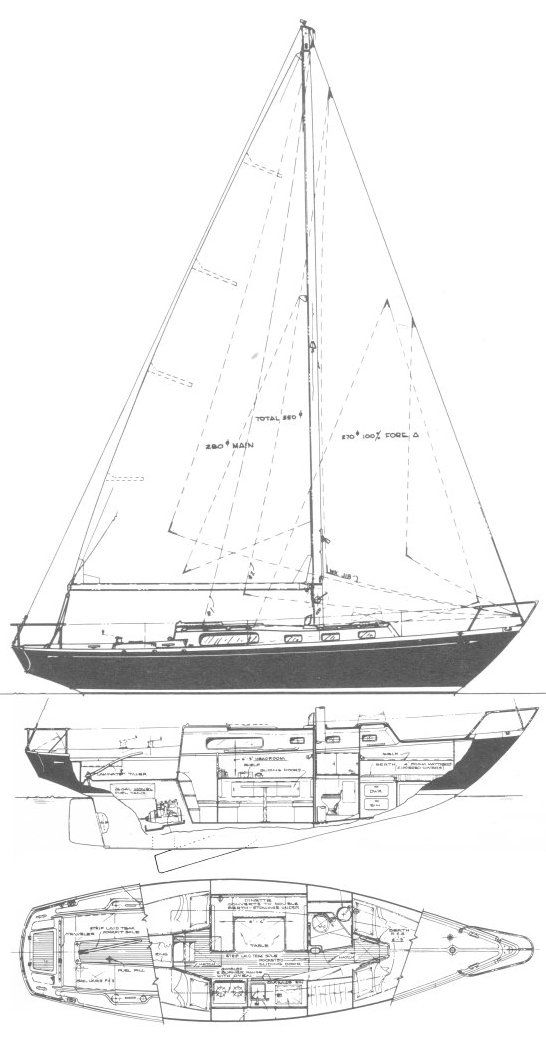

Rig And Sail Specs

Help?

I:12.42 m / 40.75 ft

S.A. Fore:10.69 m / 35.07 ft

E:4.78 m / 15.68 ft

S.A. Fore:25.08 m² / 269.96 ft²

S.A. Main:25.53 m² / 274.80 ft²

S.A. Total (100% Fore + Main Triangles)50.62 m² / 544.87 ft²

Auxillary Power Tank

Make:Universal

Type:Gas

Fuel:98 L / 25.89 gals

Accomodations

Water:114 L / 30.12 gals

Contributions

Builders:Morgan Yachts

Designers:Charles Morgan

FAQ

Who designed the MORGAN 34?

MORGAN 34 was designed by Charles Morgan.

Who builds MORGAN 34?

MORGAN 34 is built by Morgan Yachts.

When was MORGAN 34 first built?

MORGAN 34 was first built in 1965.

How long is MORGAN 34?

MORGAN 34 is 7.54 m in length.

What is mast height on MORGAN 34?

MORGAN 34 has a mast height of 10.69 m.
