HAIDA 26 Detailed Review

1 of 2

If you are a boat enthusiast looking to get more information on specs, built, make, etc. of different boats, then here is a complete review of HAIDA 26. Built by Philbrook's Boatyard (CAN) and designed by Raymond Richards, the boat was first built in 1965. It has a hull type of Fin w/transom hung rudder and LOA is 7.85. Its sail area/displacement ratio 18.39. Its auxiliary power tank, manufactured by undefined, runs on undefined.

HAIDA 26 has retained its value as a result of superior building, a solid reputation, and a devoted owner base. Read on to find out more about HAIDA 26 and decide if it is a fit for your boating needs.

Boat Information

Boat Specifications

LOA:7.85 m / 25.75 ft

Rigging Type:Fractional Sloop

Hull Type:Fin w/transom hung rudder

S.A. (reported):28.15 m² / 303.00 ft²

Draft (max):1.37 m / 4.49 ft

Displacement:1950 kg / 4299.01 lbs

Ballast:816 kg / 1798.97 lbs

S.A./Disp.:18.39

Bal./Disp.:41.86

Disp./Len.:207.28

Construction:Wood/FG

Ballast Type:Iron

Designers:Raymond Richards

LWL:6.4 m / 21.00 ft

Sail Boat Calculation

Definitions

Comfort Ratio:17.82

Capsize Screening Formula:2.03

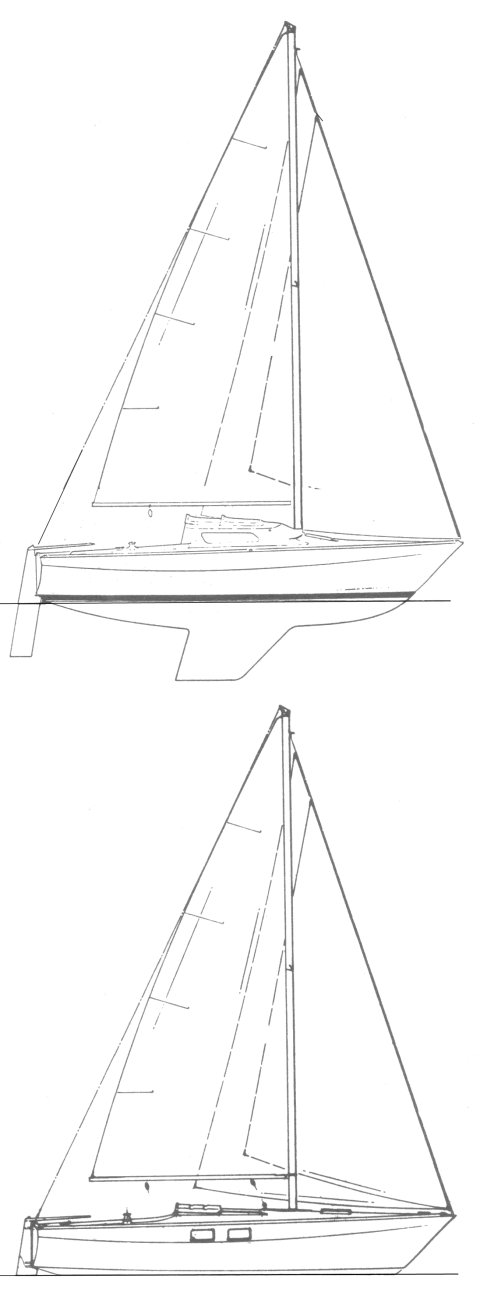

Rig And Sail Specs

Help?

I:8.93 m / 29.30 ft

S.A. Fore:8.47 m / 27.79 ft

E:3.66 m / 12.01 ft

S.A. Fore:12.66 m² / 136.27 ft²

S.A. Main:15.5 m² / 166.84 ft²

S.A. Total (100% Fore + Main Triangles)28.15 m² / 303.00 ft²

Contributions

Builders:Philbrook's Boatyard (CAN)

Designers:Raymond Richards

FAQ

Who designed the HAIDA 26?

HAIDA 26 was designed by Raymond Richards.

Who builds HAIDA 26?

HAIDA 26 is built by Philbrook's Boatyard (CAN).

When was HAIDA 26 first built?

HAIDA 26 was first built in 1965.

How long is HAIDA 26?

HAIDA 26 is 6.4 m in length.

What is mast height on HAIDA 26?

HAIDA 26 has a mast height of 8.47 m.
