CS 22 Detailed Review

1 of 2

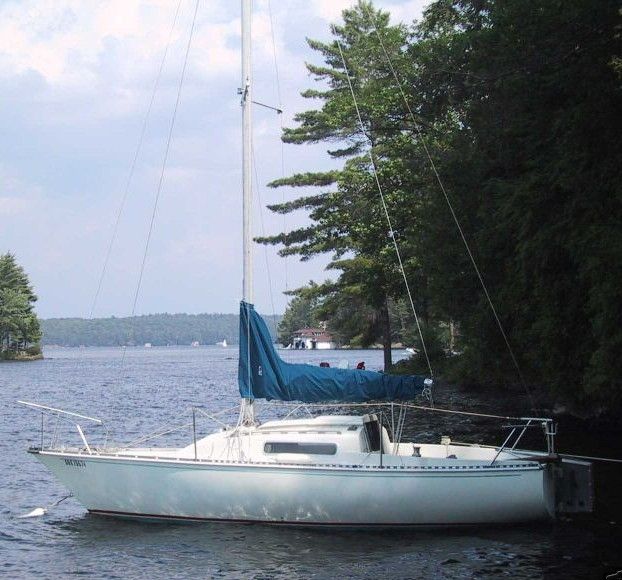

If you are a boat enthusiast looking to get more information on specs, built, make, etc. of different boats, then here is a complete review of CS 22. Built by CS Yachts (Canadian Sailcraft) and designed by John A. Butler, the boat was first built in 1971. It has a hull type of Swing Keel and LOA is 6.58. Its sail area/displacement ratio 18.39. Its auxiliary power tank, manufactured by undefined, runs on undefined.

CS 22 has retained its value as a result of superior building, a solid reputation, and a devoted owner base. Read on to find out more about CS 22 and decide if it is a fit for your boating needs.

Boat Information

Boat Specifications

LOA:6.58 m / 21.59 ft

Rigging Type:Fractional Sloop

Hull Type:Swing Keel

S.A. (reported):18.02 m² / 193.97 ft²

Draft (max):1.52 m / 4.99 ft

Displacement:998 kg / 2200.21 lbs

Ballast:499 kg / 1100.11 lbs

S.A./Disp.:18.39

Bal./Disp.:50.00

Disp./Len.:183.26

Construction:FG

Last Built:1976

Designers:John A. Butler

LWL:5.33 m / 17.49 ft

Sail Boat Calculation

Definitions

Comfort Ratio:11.38

Capsize Screening Formula:2.46

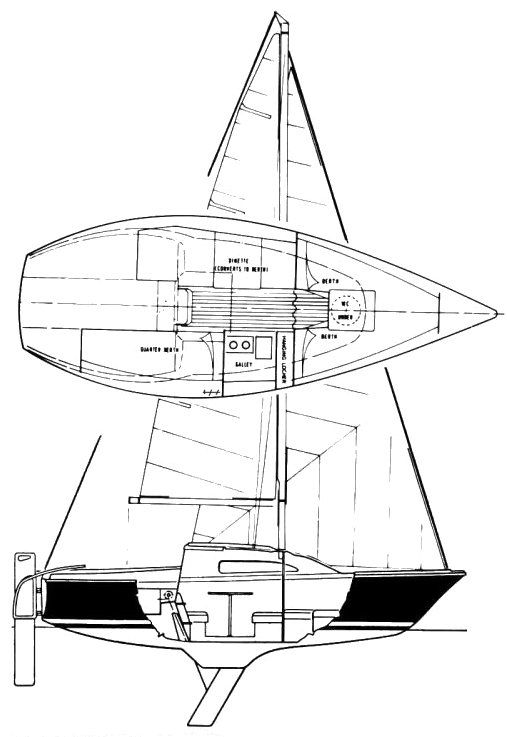

Rig And Sail Specs

Help?

I:8.08 m / 26.51 ft

S.A. Fore:7.32 m / 24.02 ft

E:2.13 m / 6.99 ft

S.A. Fore:10.22 m² / 110.01 ft²

S.A. Main:7.8 m² / 83.96 ft²

S.A. Total (100% Fore + Main Triangles)18.02 m² / 193.97 ft²

Contributions

Builders:CS Yachts (Canadian Sailcraft)

Designers:John A. Butler

FAQ

Who designed the CS 22?

CS 22 was designed by John A. Butler.

Who builds CS 22?

CS 22 is built by CS Yachts (Canadian Sailcraft).

When was CS 22 first built?

CS 22 was first built in 1971.

How long is CS 22?

CS 22 is 5.33 m in length.

What is mast height on CS 22?

CS 22 has a mast height of 7.32 m.
