BIRD (SF BAY) Detailed Review

1 of 2

If you are a boat enthusiast looking to get more information on specs, built, make, etc. of different boats, then here is a complete review of BIRD (SF BAY). Built by undefined and designed by John G. Alden, the boat was first built in 1923. It has a hull type of Long Keel and LOA is 9.17. Its sail area/displacement ratio 15.14. Its auxiliary power tank, manufactured by undefined, runs on undefined.

BIRD (SF BAY) has retained its value as a result of superior building, a solid reputation, and a devoted owner base. Read on to find out more about BIRD (SF BAY) and decide if it is a fit for your boating needs.

Boat Information

Boat Specifications

LOA:9.17 m / 30.09 ft

Rigging Type:Fractional Sloop

Hull Type:Long Keel

S.A. (reported):37.9 m² / 407.95 ft²

Draft (max):1.6 m / 5.25 ft

Displacement:4082 kg / 8999.26 lbs

Ballast:2087 kg / 4601.04 lbs

S.A./Disp.:15.14

Bal./Disp.:51.11

Disp./Len.:267.60

Construction:Wood

# Built:30

Designers:John G. Alden

LWL:7.52 m / 24.67 ft

Sail Boat Calculation

Definitions

Comfort Ratio:35.05

Capsize Screening Formula:1.48

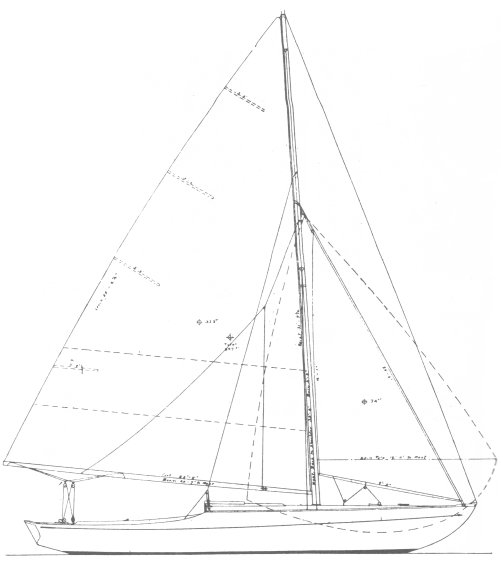

Rig And Sail Specs

Help?

I:6.17 m / 20.24 ft

S.A. Fore:9.75 m / 31.99 ft

E:6.25 m / 20.51 ft

S.A. Fore:8.94 m² / 96.23 ft²

S.A. Main:30.47 m² / 327.98 ft²

S.A. Total (100% Fore + Main Triangles)39.41 m² / 424.21 ft²

Contributions

Designers:John G. Alden

FAQ

Who designed the BIRD (SF BAY)?

BIRD (SF BAY) was designed by John G. Alden.

When was BIRD (SF BAY) first built?

BIRD (SF BAY) was first built in 1923.

How long is BIRD (SF BAY)?

BIRD (SF BAY) is 7.52 m in length.

What is mast height on BIRD (SF BAY)?

BIRD (SF BAY) has a mast height of 9.75 m.
